PRINCIPLE

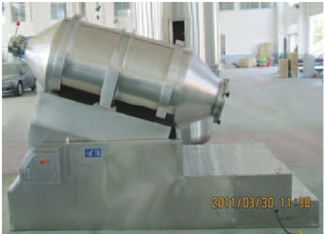

◆ EYH Series Tow dimensions mixer mainly consists of three big parts,
rotating cylinder, swinging rack and frame. The rotating cylinder lies on
the swinging rack, supported by four wheels and its axial fixation is done
by two stop wheels. Two of the four wheels are driven by rotating system
to make the cylinder rotate. The swinging rack is driven by a set of crank-
shaft swinging bar which is mounted on the frame and the swinging rack
is supported on the frame.
FEATURES
◆ The rotating cylinder of EYH Two Dimensions Mixer can make two motions
at the same time. One is the rotation of the cylinder and the other is swinging
of the cylinder along the swinging rack. Materials to be mixed will rotate when
the cylinder is rotating, and will be mixed from left to right and vice versa when
the cylinder is swinging. As the result of these two motions, materials can be
mixed fully in a short time. EYH Two Dimensions Mixer is suitable for mixing of
all powder and granule materials.

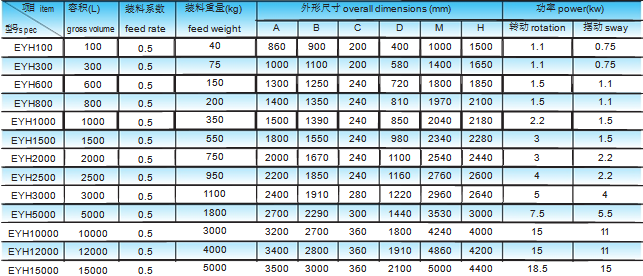

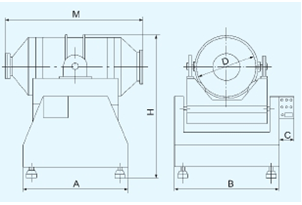

TECHNICAL PARAMETERS
The bulk density of material is made based on 0.6g/cm3. Please point out if it's over. |
