cut by high-speed cutter and become uniform granules.
特 点 Features
◆ The machine adopts horizontal cylinder structure, its structure
reasonable.
◆ Air filled seal shaft for to drive. When washing , it can be
changed to water.
◆ Fluidized Granulation, the granule is around ball shape. Its flow
ability is good.
◆ Compared to traditional process, 25% of adhesive can be re-
duced and the drying time is short.
◆ The dry mixing time is 2 minutes and the granulating time is
1-4 minutes. Compared to the traditional process , 4-5 times of ef-
ficiency is raised.
◆ Dry mixing ,humid mixing and granulating are finished in the
same sealed container. It is in conformity with the requirements of
GMP.
◆ The whole operation has strict safe and protective measures.
◆ Jacket type might be adopted on request

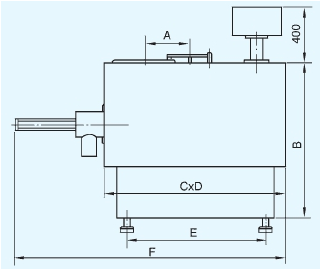

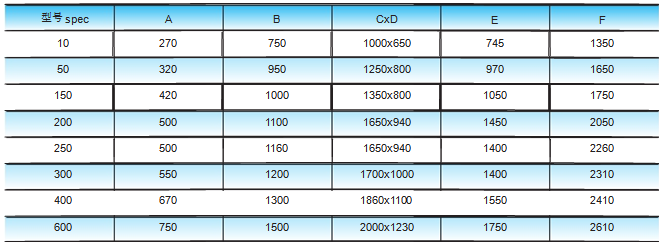

OVERALL DIMENSION:
