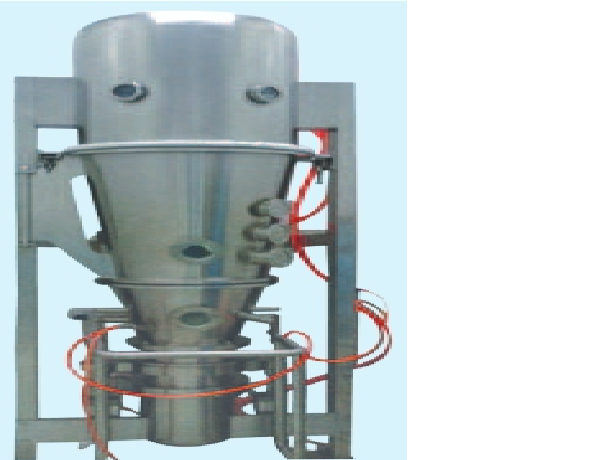

PGL-B Series Spray Drying Granulator
Click to enlarge
Product model：
 PGL-B
Product quotation ：
 面议
Product origin：
 MADE IN CHINA
Pharmaceutial Industry:tablet,medicinal granules,capsule granule,granule of Chinese medicine with no or low sugar. Foodstuff:cocoa,coffee,milk,powder,juice of granule,flavoring and so on. Other Industries: pesticides,feed,Chemical fertilizer,pigment,dyestuff and so on.
　Related products ：

Applications:

Features:

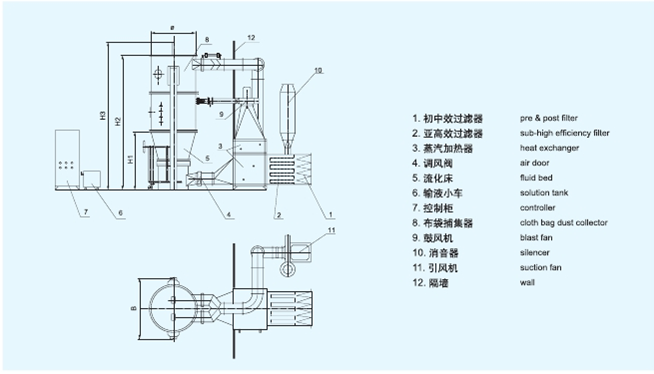

Schematic of Installation:

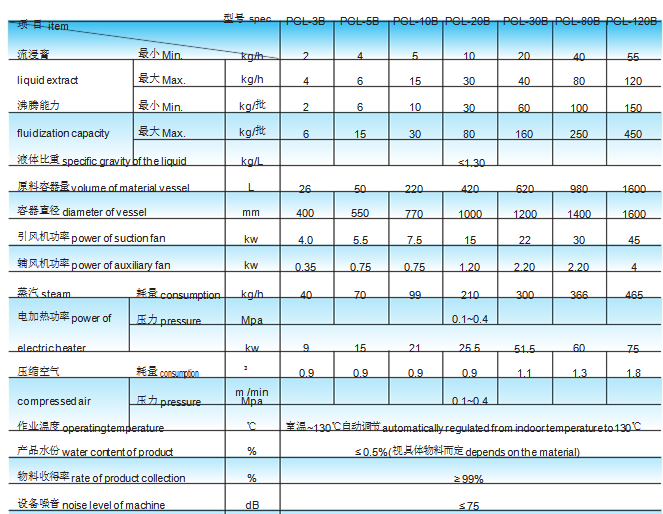

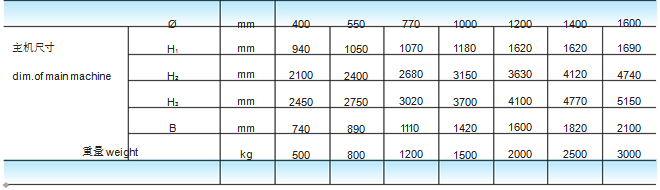

Technical parameter:

 ◆


Example of model choice: Suppose that are 120kg liquid extract I (include 30% solid) and 60kg seed II in one vessel,from I and II ,we can get theoretical product amount M=mI+mII=120kg x 30%+60kg=96kg,working time T=120kg/30kg/h=4h,from the parameter table we can find that the

fluidization amount is inside the standard loading range. If we require two batches in one duty time, PGL-30B is OK.
