APPLICATION:
FEATURES
◆
◆
Adopt vibration motor, it is smooth in running and convenient in maintenance. The noise is low and the service life is long.
The state of fluidization is uniform and no dead gaps or broken phenomenon so to have dry ,cool product.
◆ It is good in adjustment and wide in the field of application. The thickness of raw material and the speed of raw material to be moved in-
side the machine and the change of vibration range can be steeples.
◆ The damage the surface of raw material is small. So it can be used for raw materials that are easily to be broken. If the granule is not
normal, the effect of process can not be effected.
◆ The structure is fully seal, it is effective to prevent from cross pollution of raw materials and the working environment is clean.
◆ The mechanical and heat are high and its effective of energy saving. compared to ordinal dryer, 30-60% of energy is saved.

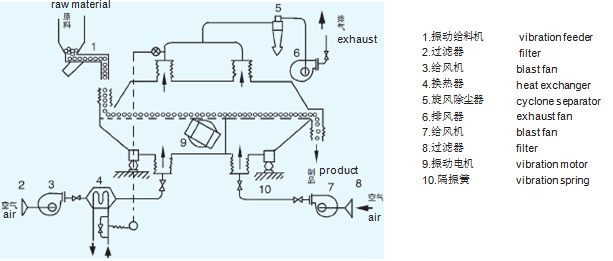

FLOW CHART

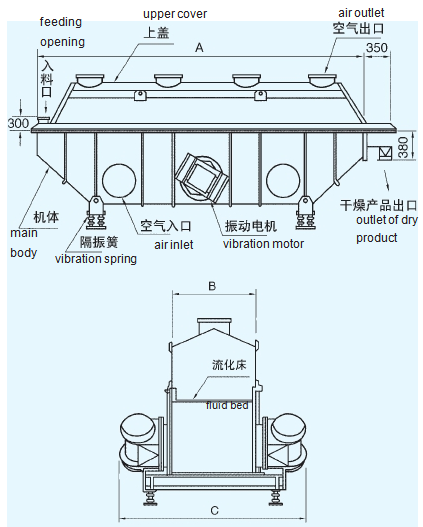

SCHEMATIC OF INSTALLATION

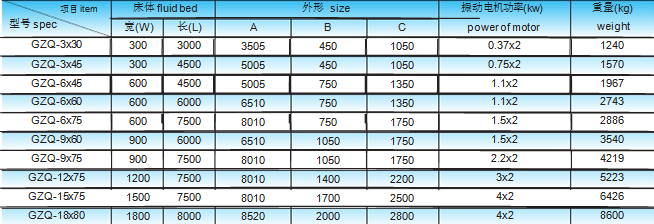

TECHNICAL PARAMETERS
|
