DESCRIPTION
LHY Ribbon Mixer is generally used for mixing of sticky or cohesive powder, and for mixing of powder with liquid and paste material. Meanwhile, due to the difficulty of cleaning of sticky material, it is used for mixing of big quantity, seldom changed material.
FEATURES
Structure of ribbon mixer.

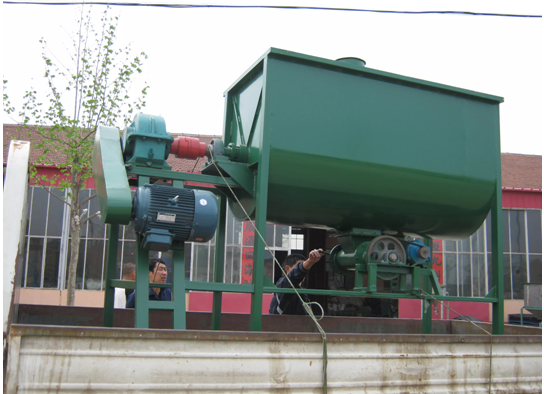

1.Consist of U shape vessel, ribbon stirring blades and driving part.
2.U shape long barrel structure, guarantee the small resistance movement of mixed material (such as powder, semi-fluid) in the barrel.

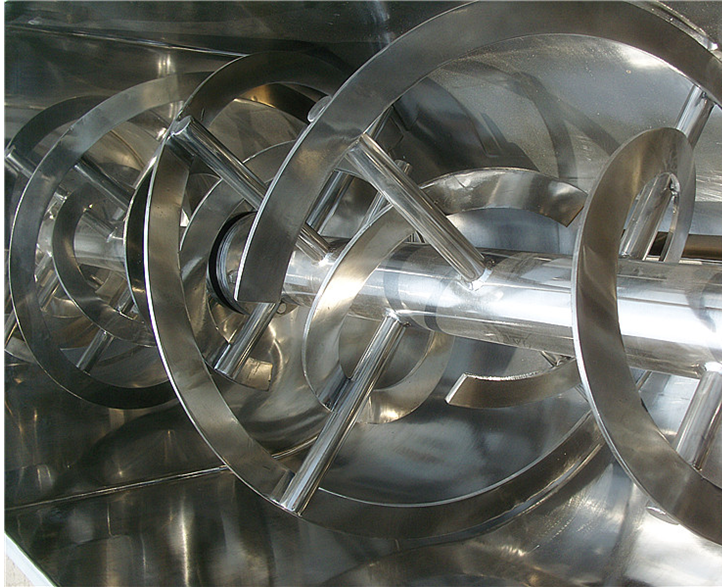

3.Positive and negative rotating ribbon bar is placed on the same horizontal shaft, forming a low dynamic, high efficient mixing environment. The ribbon blades are made into two or three layers, of which the outer layer draw the material from periphery to center, the inner layer push the material from center to periphery. Thus, the material can forme more eddy when flowing. All in all, the mixing velocity are increased, and the uniform of mixing are improved.
4.Horizontal ribbon mixer is a new stirring and mixing equipment with a high efficiency, high uniformly, high loading factor, low energy consumption, low pollution and low break.
5.This machine can be applied widely for mixing of powder and powder, powder and liquid, especially for stirring of paste, adhesive, high specific gravity material (such as putty, stone-like coating, metallic powder). It has a wide application to pharmaceutical, food, pesticide, dye, chemical, plastic, ceramic, coating, putty, mortar, etc.
Applications scope:
It can be applied for mixing of solid-solid(powder and powder), solid- pulp(powder and rubber slurry),especially for sticky material. So it has a wide applications to pesticide, veterinary drug, chemical, biology, breeding, ceramic, fire proof material, plastic and rubber, compound fertilizer industries, etc.
|
