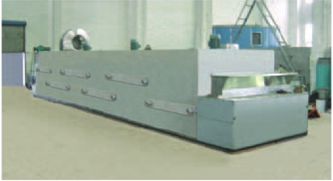

DESCRIPTION
This machine is a continuous penetrating flow drying
equipment applied for drying pieces strip and particles state
materials with good ventilation. The machine is suitable for
the materials such as de-watering vegetable, herbal medicine
of traditional Chinese medicine and others, for which the
water contents are high and high drying temperature is not
allowed. The machine owns the advantages, of fast drying
speed, high evaporation capacity and good product quality.
The de-watered& filtered cake state paste material should be
made into particles or strips before drying process.

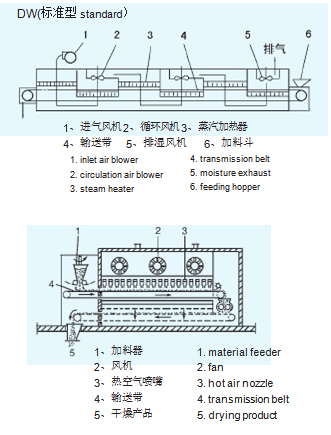

PRINCIPLE
◆

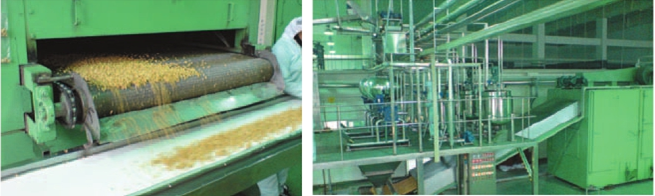

The materials are uniformly distributed on the mesh-belt by the material feeder. The mesh-belt generally adopts 12-60 mesh
stainless steel mesh and it is drawn by a transmission device and move inside the dryer. The dryer is composed of several
sections. For each section the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust
blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water
material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final
products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely
equipped according to the user's requirements. The number of section might be selected according to the production demands.
APPLICATIONS
◆De-watering vegetable, particle feed,
gourmet powder, shredded coconut stuffing,
organic color, compound rubber, acral fibre,
medicine product, medicine material, small
wooden product, plastic product, aging and
solidification for the electronic component and
device.

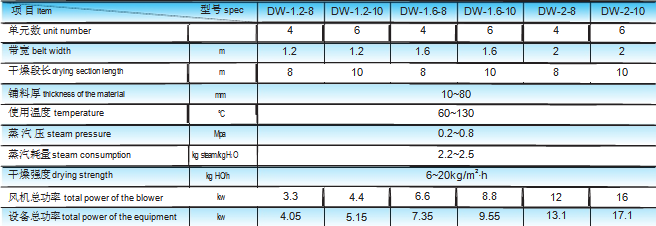

TECHNICAL PARAMETERS
 |
