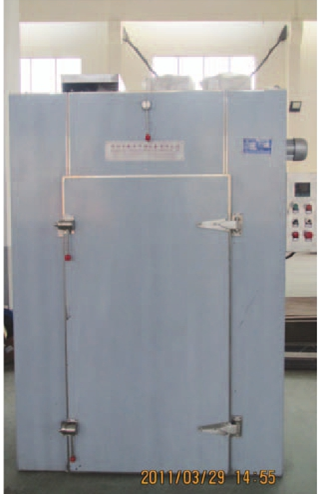

DESCRIPTION
CT-C series hot air circulation oven adopts noise elimination and thermal
stable axial flow fan and automatic temperature control system. The
entire circulation system is enclosed to make that the heat efficiency of
the drying oven increases from 3-7% of the traditional drying oven to 35-
40% of the present one. The highest heat efficiency can be up to 50%. The
successful design of CT-C hot air circulation oven makes that the hot air
circulation drying oven in our country reach the advanced level in the world.
It saves energy and increases the economic benefit. In 1990, the medical
management bureau of the State issued the industry standard and the

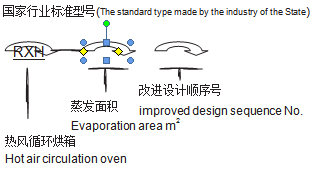

uniform type is RXH
APPLICATIONS
◆ This drying oven is suitable for material and product hot solidification and
dry de-watering in the pharmaceutical, chemical, food, farming, side-product,
aquatic product, light industries, heavy industries and others industries. Such
as: raw material medicine, crude drug, prepared herbal medicine of Chinese
traditional medicine, plaster, powder, particle, drinking agent, pill, packing
bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage,
plastics, resin, electric component, baking varnish and etc.
EXPLANATION
1.Options of heat source: steam, electricity, or far infrared, or both steam
electricity.
2.Drying temperature: steam heating 50-130˚C, Max.140˚C.
3.Electricity and far infrared:50-300˚C.Automatic control system and computer
control system on request.
4.Commonly using steam pressure 0.2-0.8Mpa(2-8 bar).
5.For CT-C-I, electric heated, rated power consumption:15Kw, real
consumption : 5-8Kw.
6.The special requirements should be indicated at the time of order.
7.For operation temperature of over 140˚C or less than 60˚C, please indicate
when order.
8.The ovens and baking trays made by our factory are uniform in dimensions,
and can be exchanged each other.
9.Baking plate dimensions:460x640x45mm.
FEATURES
Most hot air is circulated in the oven. The heat efficiency is high and the energy is saved. By using the forced ventilating function, there are adjustable air
distribution plates inside the oven, the materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared, with a wide
selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance
are easy. The application is wide. The machine can be used for drying various materials and is a versatile drying equipment.

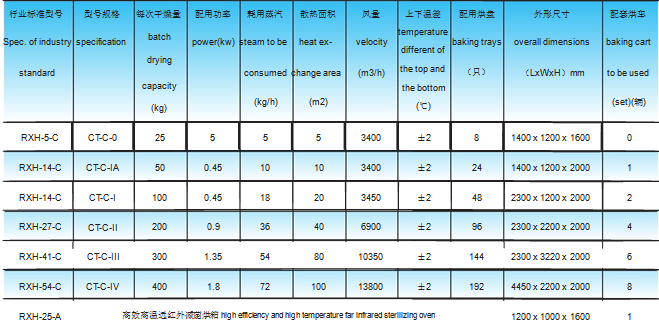

TECHNICAL PARAMETERS

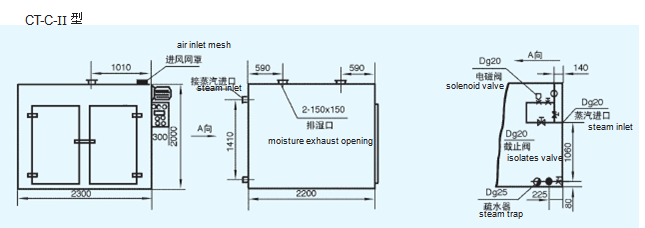

DIMENSIONAL DISGRAM OF CT-C-II DRYING OVEN
 |
