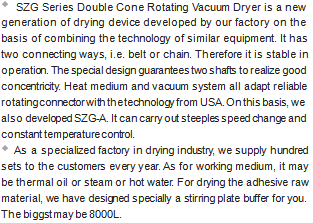

DESCRIPTION:

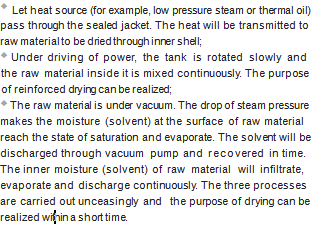

PRINCIPLE

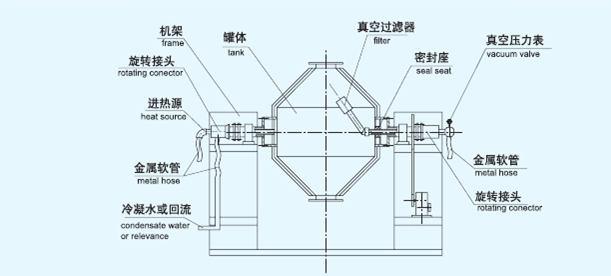

SKETCH OF STRUCTURE
Applications
◆It is suitable for the raw materials that need to concentrate, mixed and dried at low temperature (for example, biochemistry) products in chemical,pharmaceutical and foodstuff industries. Particularly it is suitable for the raw materials that are easy to be oxidized, volatilized and have night heat sensitivity and is toxic and not permitted to destroy its crystal in drying process
TECHNICAL PARAMETER
Speed adjusting motor of 0-6rpm might be chosen according to the user's requirements. The following aspects should be point out when to order:
1. The above-mentioned parameters are calculated based on material density of 0.6g/cm3. If it's over, please point out.
2. If certificate for pressure vessel is required, please point out.
3. If glass lining for interior surface is required, please point out.
If the material is explosive, or flammable, the calculation should be made according to trial result.
|
