PRINCIPLE:
Purified and heated air is introduced from the bottom
through suction fan and passed through the screen
plate of raw material．In the work chamber，the state
of fluidization is formed through stirring and neative
pressure．The moisture is evaporated and re-moved
rapidly and the raw material is dried quickly.

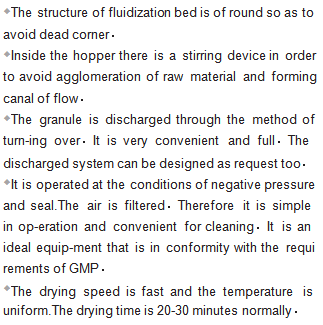

FEATURES
Applications
◆Screw extruded granules，sway produced YK series
Granules and granules produced by GHL series
Granulator.
◆Suitable for drying humidity block or powde r
raw mate- rial in Pharmaceutical，foodstuff，feed，
chemical industries and so on fields．
◆Large granules, small blocks and adhesive material.
◆The materials that volumes migh vary during drying
process.

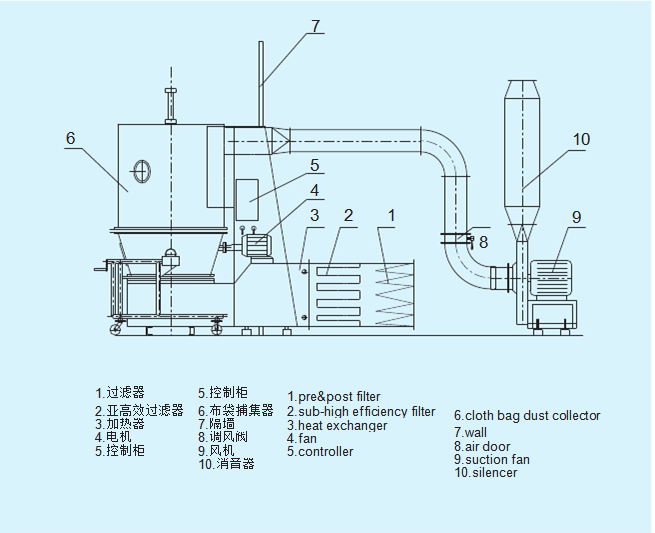

FLOW CHART

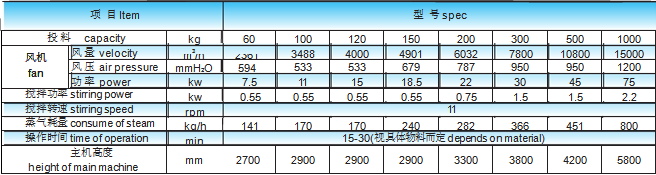

TECHNICAL PARAMETERS
|
