Description:
◆Spray drying is the technology most widely used in the
liquid technology shaping and in the drying industry. The
drying technology is most suitable for producing solid
powder or particle products from liquid materials, such as:
solution, emulsion, suspension and pumpable paste states.
For this reason, when the particle size and distribution of
the final products, residual water contents, mass density
and the particle shape must meet the precise standard,
spray drying is one of the most desired technologies.

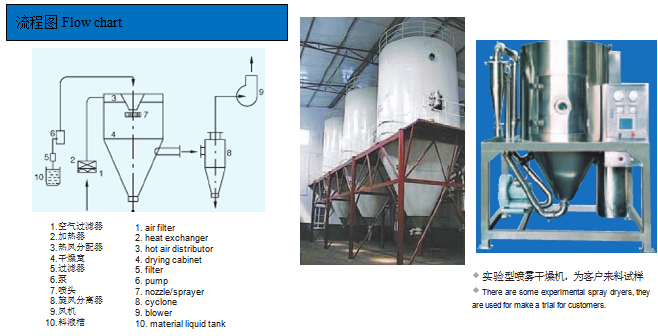

Principle:
After been filtered and heated the air enters into the air distributor on the top of the dryer. The hot air enters into the drying room in the
spiral form uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower, the material liquid will rotate and be
sprayed into the extremely fine mist liquid beads. Through very short time of contacting the heat air, the materials can be dried into the final
products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will
be discharged from blower.

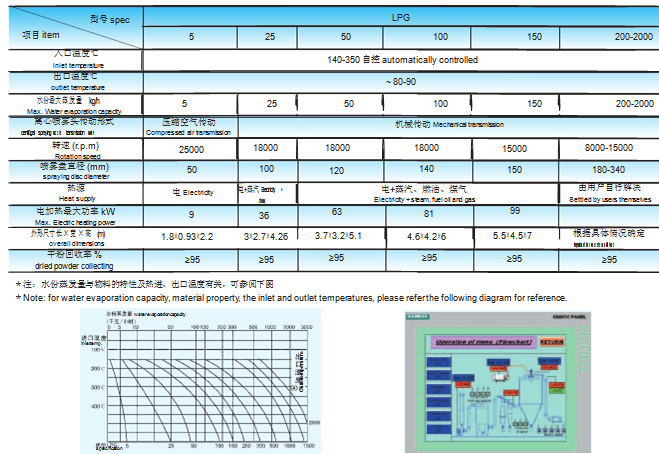

Technical Parameter:
|
